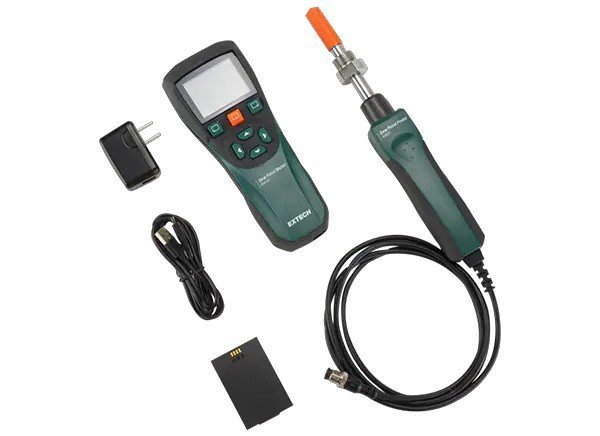

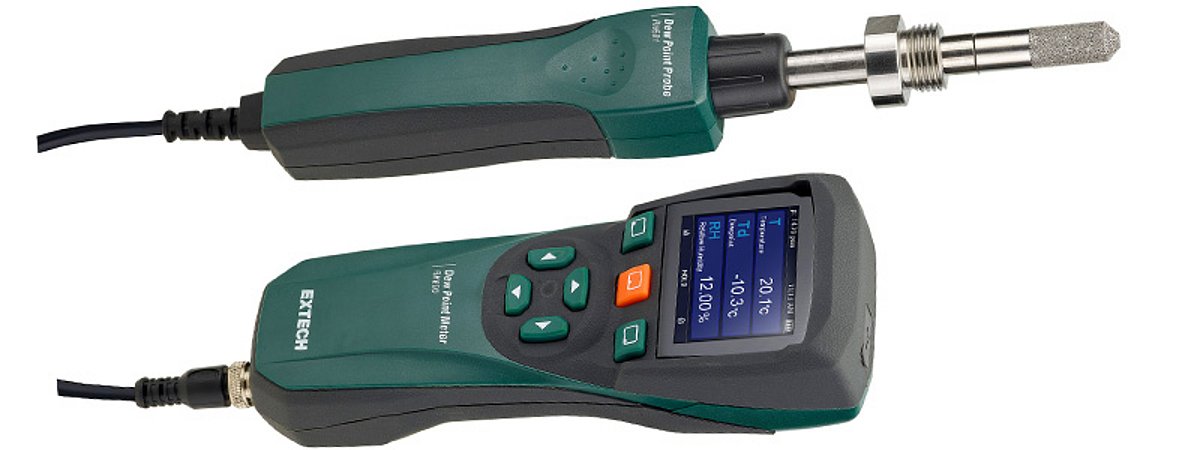

Extech RH600 Dew Point Meter

Extech RH600 Dew Point Meter

The Extech RH600 dew point meter is designed to accurately measure and record dew point levels in compressed air systems. This high-precision dew point meter is designed to help monitor and prevent damage to pneumatic systems. Measured values ​​can be viewed on a color graphic display and transferred to a PC in CSV format via USB. The Extech RH600 dew point meter can measure dew point at temperatures as low as -58°C and atmospheric pressures up to 20 bar.

Features (Extech RH600 Dew Point Meter):
Measures dew point as low as -50°C under a maximum atmospheric pressure of 20 bar.
Sensor dehumidification/purification feature allows for rapid drying after exposure to moisture.
G1/2" thread for direct connection of the sensor probe to the compressed air system.
Measures low humidity (RH <5%) with high accuracy (±0.025%).
Color graphic display with menu-based user interface.
Records and transfers up to 32,000 data sets to a computer via USB.

Specifications (Dew Point Meter) Extech RH600
- Maximum resolution 0.01% RH
- Temperature range -10°C to 60°C
- Water concentration 40 to 20,000 ppm
- 32,000 data logging records with timestamps
- Rechargeable 3.7V Li-ion battery (included)
- 192 mm × 77 mm × 40 mm
- Weight 598 g (1.3 lb)
