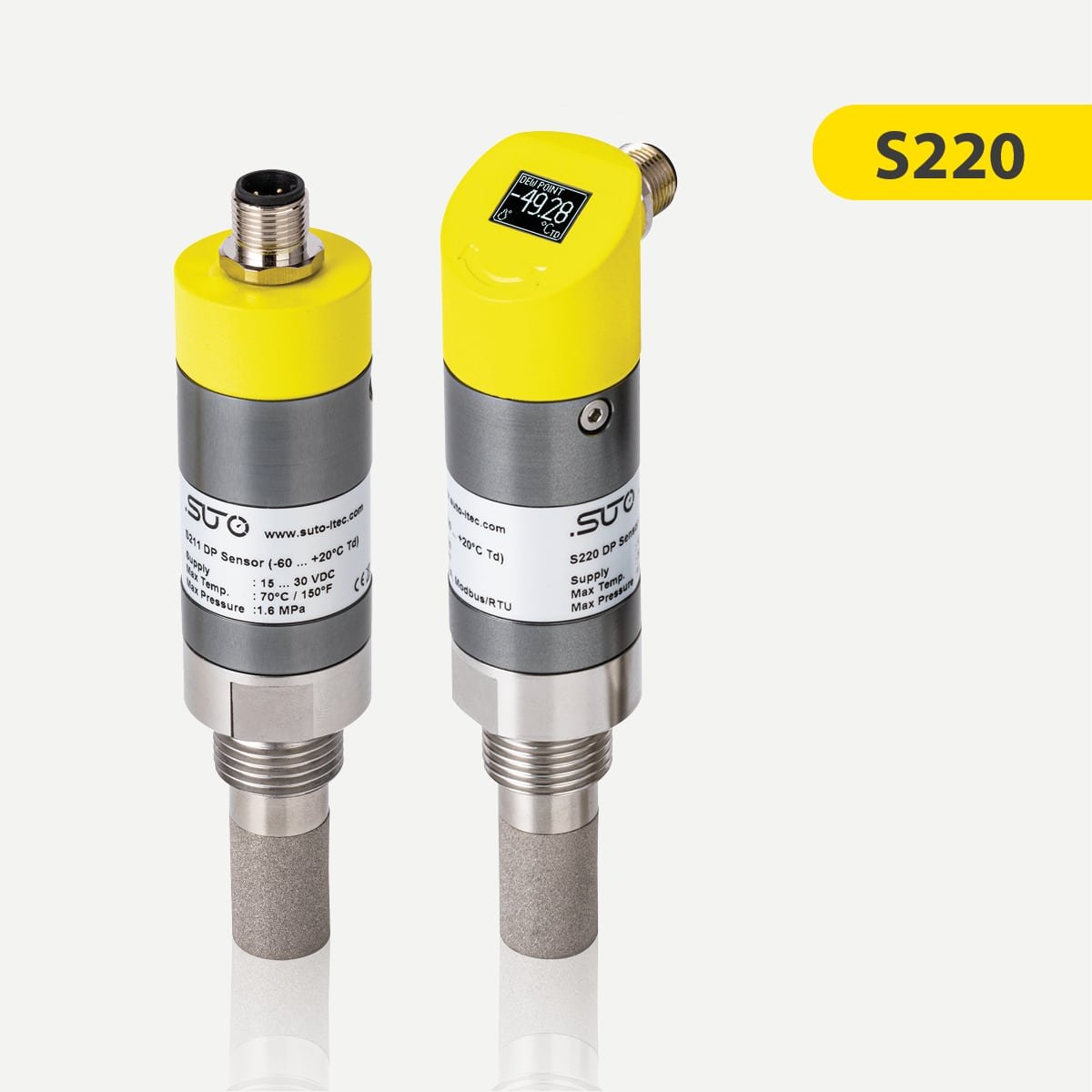

SUTO iTEC Dew Point Meters-S220

Description

The SUTO S220 Dew Point Sensor provides reliable and long-term stable dew point monitoring for compressed air and gases in industrial applications. The sensor has a range of -100 +20 °C Td. This makes it an ideal choice for dew point measurements in high-tech industries and special conditions, where accordance to the compressed air quality ISO 8573-1 Standards is required.

State-of-the-art Dew Point Monitoring
The new generation of the SUTO dew point sensors have been redesigned from the ground up, offering compressed air users a plug & play solution to monitor their compressed air quality and purity. With the integrated pressure sensor, the S220 measures dew point, temperature and pressure in a single instrument.

Minimization of calibration intervals
Thanks to the reliable and long-term stable measurements, the S220 Dew Point Sensor reduces the maintenance cost to a minimum by increase calibration intervals.

MEASUREMENT
 Dew Point
Accuracy
± 1 °C Td (0 ... 20 °C Td)
± 2 °C Td (-60 ... 0 °C Td)
± 3 °C (-100 ... -60 °C Td)
Selectable units
°C, °F, bar(g), MPa(g), psi(g), % rH, g/m³,
mg/m³, g/m³ atm., mg/m³
Measuring range
-100 ... +20 °C Td
Repeatability
0.25 % vom Messwert
Sensor
Polymer + QCM
Response time (t90)
0 °C Td ➞ -80 °C Td ≤ 420 sec
-80 °C Td ➞ 0 °C Td ≤ 90 sec
@ 4 l/min
