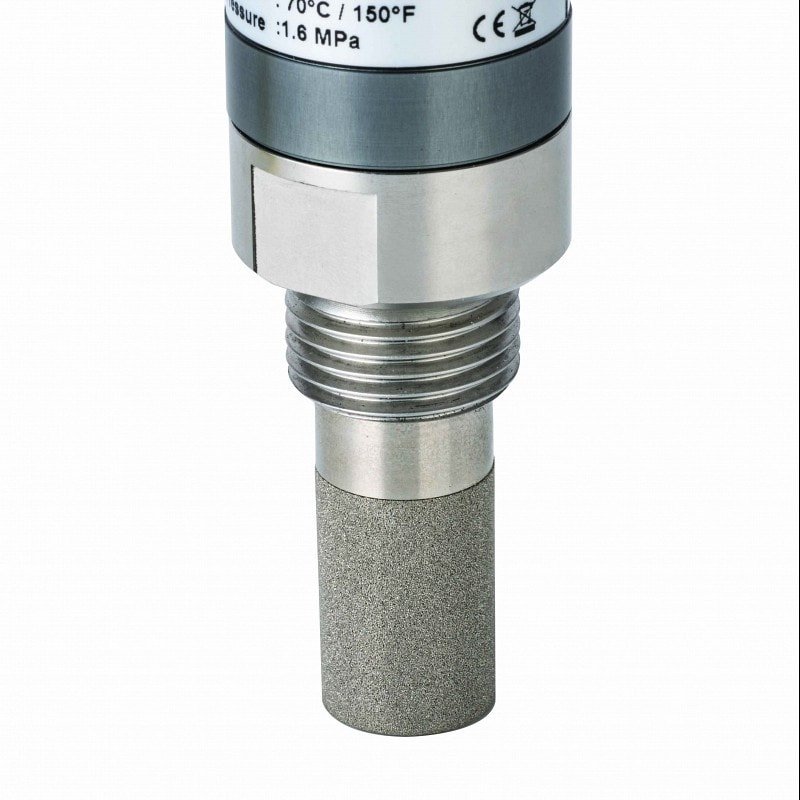

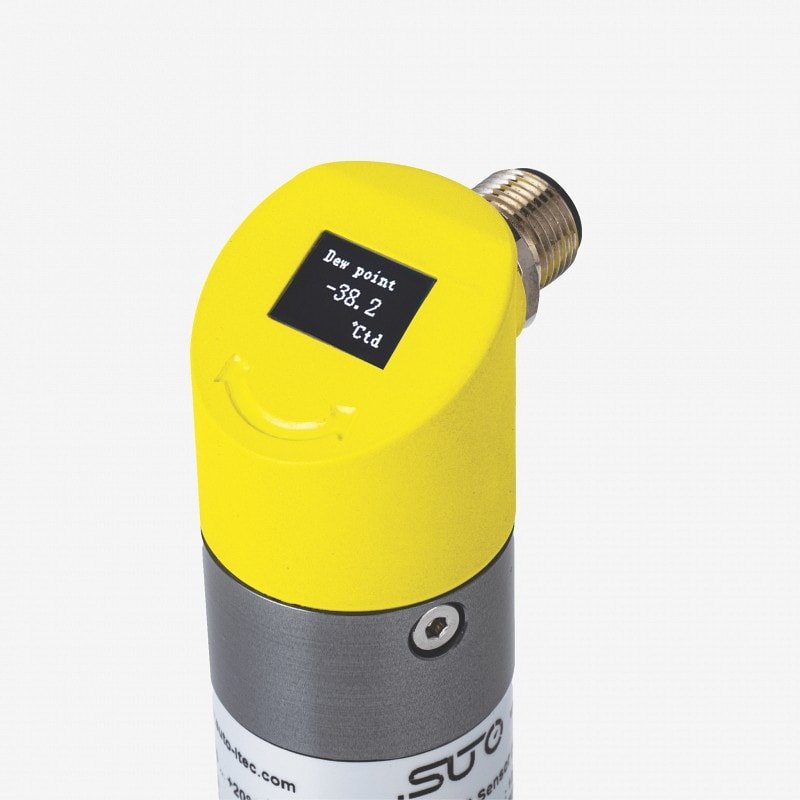

S215 Dew Point Sensor

S215 Dew Point Sensor

The SUTO S215 Dew Point Sensor provides reliable dew point monitoring in industrial applications, with long-term stability and high accuracy over the full range of -20 +50 °C Td. Along with its compact design, this makes it the ideal solution for compressed air and gas dew point measurements in refrigeration dryers.

MEASUREMENT Dew Point
Accuracy
± 1 °C Td (0 ... 50 °C Td)
± 2 °C Td (-20 ... 0 °C Td)
Selectable units
°C, °F, bar(g), MPa(g), psi(g), % rH, g/m³,
mg/m³, g/m³ atm., mg/m³
Measuring range
-20 ... +50 °C Td
Repeatability
0.25 % from measured value
Sensor
Polymer
Response time (t90)
0 °C Td ➞ -20 °C Td ≤ 50 sec
-20 °C Td ➞ 0 °C Td ≤ 35 sec
@ 4 l/min
Pressure
Accuracy
0.5 % FS
Measuring range
0 ... 1.6 MPa
Sensor
Piezo-resistiv
Temperature
Accuracy
+/- 0.3 °C
Measuring range
-30 ... +70 °C
Sensor
Pt100
Reference conditions
Wählbare Bedingungen
20 °C 1000 mbar (ISO1217), 0 °C 1013 mbar (DIN1343) Freely adjustable
