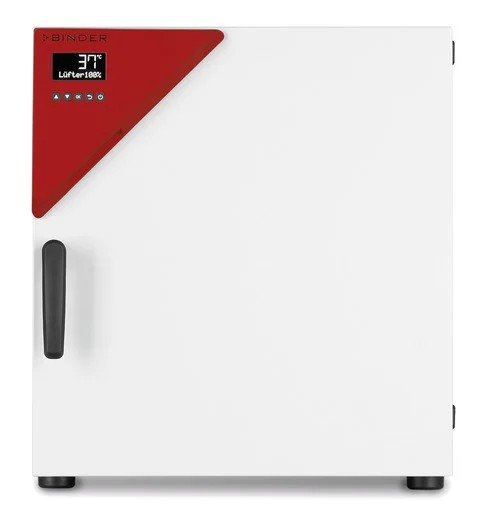

Model BD 260 | Standard-Incubators

The Model BD 260 Standard Incubator is designed to provide precise and reliable temperature control for a wide range of laboratory applications. It is ideal for microbiology, cell culture, and general incubation processes where stable and uniform temperature conditions are essential.

Benefits
Excellent temporal and spatial temperature accuracy
High process reliability
100 °C disinfection routine
Important characteristics

Temperature range: +5 °C above ambient temperature to +100 °C
High temperature accuracy thanks to APT.line™ technology
Natural convection
Controller with LCD display
Electromechanical control of the exhaust air flap

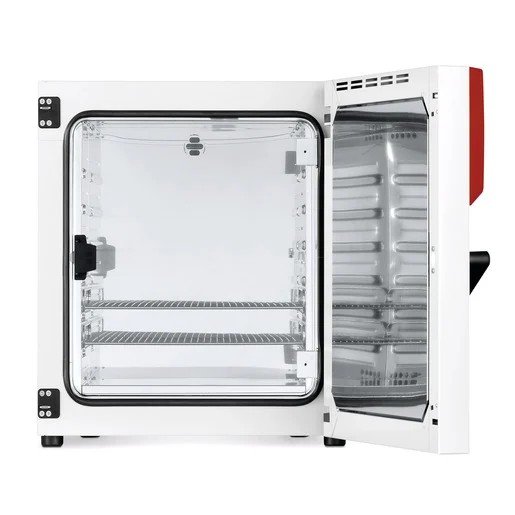

Inner door made of tempered safety glass
2 chrome-plated racks
Class 3.1 integrated independent temperature safety device (DIN 12880) with visual alarm
Ergonomic handle design
USB port for recording data

Option model  : Standard
Data
Serie    : BD
Performance Data Temperature
Heating-up time to 37 °C [min] : 60
Recovery time after 30 seconds door open at 37 °C [min]            : 16
Temperature fluctuation at 37 °C [± K]  : 0.2
Temperature range +5 °C above ambient temperature to [°C]   : 100
Temperature variation at 37 °C [± K]      : 0.3
Electrical data
Nominal power [kW]    : 0.85
Phase (Nominal voltage)            : 1~
Power frequency [Hz]  : 50/60
Rated Voltage [V]           : 230
Unit fuse [A]     : 8
Doors
Unit doors         : 1

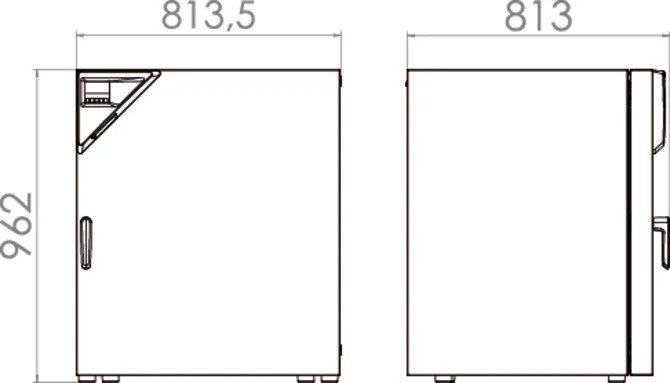

Housing dimensions not incl. fittings and connections
Depth net [mm]              : 760
Height net [mm]             : 880
Width net [mm]              : 810
Internal Dimensions
Depth [mm]      : 545
Height [mm]     : 760
Width [mm]      : 610
Measures
Interior volume [L]        : 253
Load per rack [kg]           : 40
Net weight of the unit (empty) [kg]       : 83
Permitted load [kg]       : 270
Wall clearance back [mm]          : 160
Wall clearance sidewise [mm] : 100
Environment-specific data
Energy consumption at 37 °C [Wh/h]     : 40
Fixtures
Number of shelves (std./max.) : 2/8
