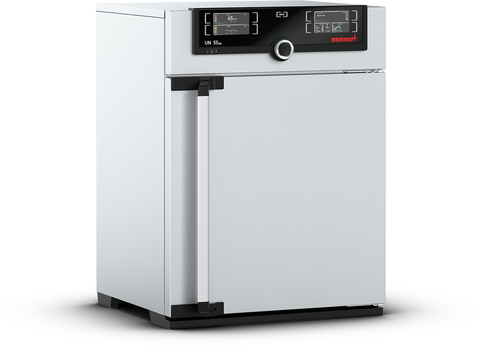

UN55pa Standard delivery Paraffin oven

UN55pa Standard delivery Paraffin oven

The universally applicable oven is our classic appliance for temperature control in science, research and material tests in industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

Temperature
Setting temperature range
+20 to +80 °C
Working temperature range
at least 5 above ambient temperature to +80 °C
Setting accuracy temperature
0.1 °C
Temperature sensor
2 Pt100 sensors DIN Class A in 4-wire-circuit for mutual monitoring, taking over functions in case of an error

Control technology
ControlCOCKPIT
TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.
Language setting
German, English, Spanish, French, Polish, Czech, Hungarian
Timer
Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
Function HeatBALANCE
adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
Function SetpointWAIT
the process time does not start until the set temperature is reached
Calibration
three freely selectable temperature values
adjustable parameters
temperature (Celsius or Fahrenheit), programme time, time zones, summertime/wintertime
