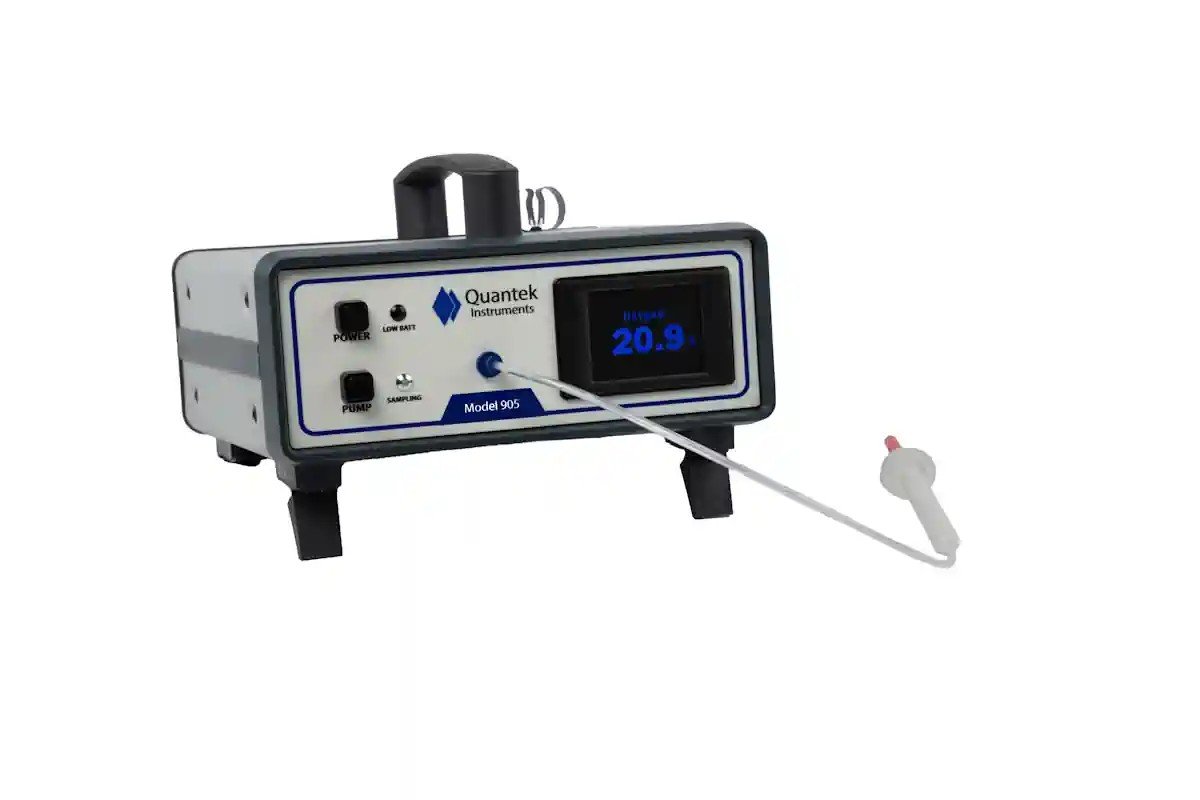

Model 905 Headspace Oxygen Analyzer

Headspace 905 (Oxygen Analyzer) – A Reliable Solution for Oxygen Measurement
Headspace 905 (Oxygen Analyzer) is a highperformance instrument designed to accurately measure oxygen levels in sealed packages and containers. This advanced device is widely used in the food, pharmaceutical, and packaging industries to ensure product quality and safety. With its precise technology, Headspace 905 (Oxygen Analyzer) helps manufacturers maintain optimal atmospheric conditions inside packages.

How Headspace 905 (Oxygen Analyzer) Works
Headspace 905 (Oxygen Analyzer) operates by extracting a small sample of gas from the headspace area of a package and analyzing the oxygen concentration in real time. The device uses advanced sensor technology to deliver fast and accurate results. Thanks to its smart design, Headspace 905 (Oxygen Analyzer) can be operated easily, even by nontechnical users.

Key Features of Headspace 905 (Oxygen Analyzer)
One of the main advantages of Headspace 905 (Oxygen Analyzer) is its high accuracy and repeatability. The device provides a clear digital display, fast response time, and easy calibration. In addition, Headspace 905 (Oxygen Analyzer) is built with a durable structure, making it suitable for both laboratory and production environments.

Applications of Headspace 905 (Oxygen Analyzer)
Headspace 905 (Oxygen Analyzer) is commonly used for quality control in modified atmosphere packaging (MAP), vacuumsealed products, and pharmaceutical blister packs. By using Headspace 905 (Oxygen Analyzer), manufacturers can detect leaks, control oxygen levels, and extend product shelf life effectively.

Benefits of Using Headspace 905 (Oxygen Analyzer)
Using Headspace 905 (Oxygen Analyzer) helps companies improve product safety, reduce waste, and comply with international quality standards. The device supports consistent production quality and increases customer confidence in packaged products.
Conclusion
In summary, Headspace 905 (Oxygen Analyzer) is an essential tool for industries that require precise oxygen measurement. Its accuracy, durability, and ease of use make Headspace 905 (Oxygen Analyzer) a smart investment for any qualityfocused manufacturing process.

Technical Specifications
Range:   0.0 to 100% Oxygen
Resolution:   0.1% Oxygen
Accuracy:  +/- 1% of reading
Minimum Detection Limit:  0.1%
Drift:   less than 1% per month
Sensor:   Proprietary electrochemical cell, expected lifetime 4-5 years
Sample Pump:   Internal, draws ~5cc/sec, with 2-12 second adjustable timer (on back of unit)
Sampling Assembly:   Probe with male luer connection for side-port needle, PTFE tubing
Calibration:   Calibrates with room air; SPAN adjustment on back; ZERO adjustment on back
Calibration Frequency:  Minimum once per year
Power Supply:   100-240V (50-60Hz) Charger included, with US or international interchangeable plug adapter (upon request)
Backup Power:  Optional 12V internal battery pack
Input Voltage: 100-240V, 50-60Hz
Battery Life:   10-14 hours before recharging
Size:  9.8in x 4in x 10in.  (249 x 102 x 254 mm)
Weight:  8 lb. (3.6 Kg)
Warranty:  2 years, parts and labor
Standards:  CE, RoHS
Included Consumables:   200 foam septas, 2 luer fit needles, 2 particulate filters, 2 liquid block filters
Included Documentation:  Owners manual (includes operating instructions with detailed calibration instructions, calibration certficate, precautions), NIST calibration certificate
