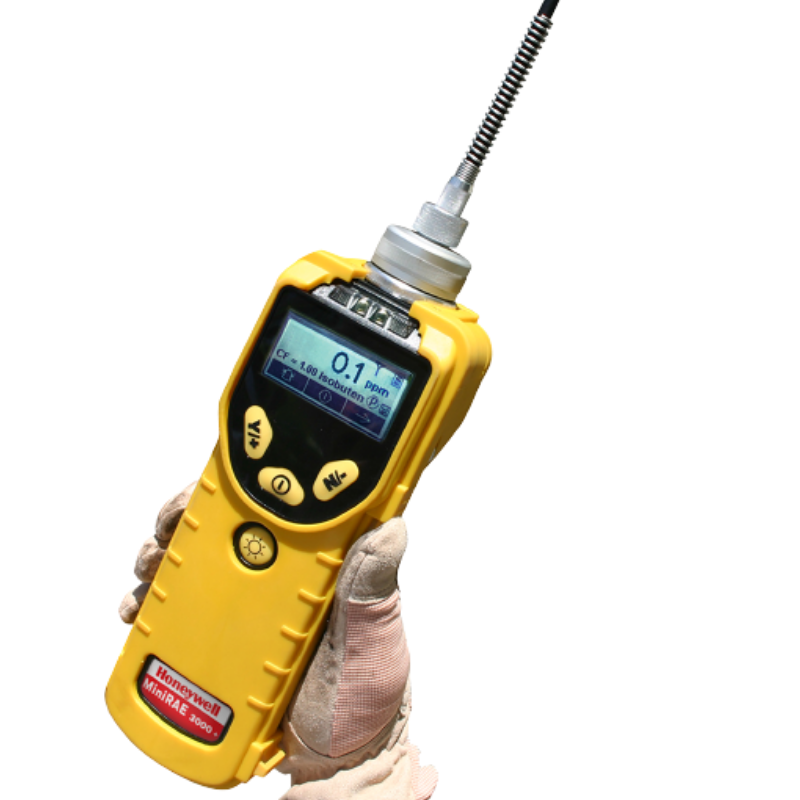

MiniRAE 3000+ Portable

MiniRAE 3000+ Portable VOC

Based on the search results, here is a detailed overview of the MiniRAE 3000+ Portable VOC (Volatile Organic Compound) Detector by Honeywell:

Overview
The MiniRAE 3000+ is described as one of the most advanced handheld VOC monitors on the market. It utilizes third-generation patented Photoionization Detection (PID) technology to accurately measure more ionizable chemicals than any other device available.

Key Features
PID Technology: Third-generation patented technology provides high accuracy.
 Detection Range: VOC measurements from 0 to 15,000 ppm.
 Fast Response Time: 3-second response time.
 Correction Factors: Built-in correction factors for more than 200 compounds.
 Humidity Compensation: Integrated humidity and temperature sensors for accurate readings in varying environments.
Lamp Technology:
- Patented PID lamp auto-cleaning technology reduces maintenance.
- Includes patented Reflex PID Technology.
Wireless Connectivity
Integrated Bluetooth for real-time data transmission.
 Optional Mesh Radio support for compatibility with ConneXT.
 Real-time data can be relayed up to 2 miles (3 km) to a command center using Bluetooth to a RAELink3 wireless transmitter.
 Robust Sampling Pump: Draw samples from up to 100 feet (30m) horizontally or vertically.
Datalogging: Logs up to 6 months of data at 1-minute intervals.
User Interface:
- Large graphic display with integrated flashlight.
- Multi-language support for up to 10 languages.
Durability and Protection:
Rugged design with a bright yellow rubber boot.
IP Rating: IP67 water-proof and dust-tight design (IP65 while running).
Technical Specifications
- Detection Range: 0 to 15,000 ppm.
Resolution:
- 0.1 ppm (from 0 to 999.9 ppm).
- 1 ppm (from 1,000 to 15,000 ppm).
- Response Time (T90): < 3 seconds.
- Size: 10" L x 3.0" W x 2.5" H (25.5 cm x 7.6 cm x 6.4 cm).
- Weight: 26 oz (738 g).
- Battery: Rechargeable, external field-replaceable Lithium-Ion battery pack. An alkaline battery adapter is also included.
- Operating Time: Approx. 16 hours (rechargeable battery) or 12 hours (alkaline battery adapter).
- Charging Time: Approx. 6 hours for a full charge.
- Alarms: 95dB buzzer and flashing red LED.
Wireless Approvals: Intrinsic safety classifications for use in Class I, Div 1, Groups A, B, C, D. ATEX and CSA certified.
Applications
The detector is suitable for various applications, including:
- Emergency response and HazMat response.
- Environmental cleanups and remediation.
- Urban Search & Rescue.
- Venue protection.
- Worker exposure monitoring
- Leak detection in industries like Oil and Gas.

MiniRAE 3000+ vs. MiniRAE Lite
The MiniRAE 3000+ offers several advanced features compared to the MiniRAE Lite, including:
- A wider detection range (0-15,000 ppm vs. 0-5,000 ppm for Lite).
- Real-time wireless data transmission (Bluetooth and optional Mesh).
- More expansive datalogging capabilities.
- Greater sensitivity with built-in correction factors for hundreds of compounds.
